By the way, if you are considering a purchace, note that the "Gowerian" differs from the "Graf Goetz" in that it has a secon cargo hold between the aft cabins and the command bridge. It is not hard to customize however.

Also, Gowerian is a costal steamer and not really a open sea vessle.

Offline Hammers

  • Amateur papiermachiéer
  • Supporting Adventurer
  • Elder God
  • *
  • Posts: 16070
  • Workbench and Pulp Moderator
Kartonwerft paper models
« Reply #16 on: May 22, 2007, 02:17:05 PM »

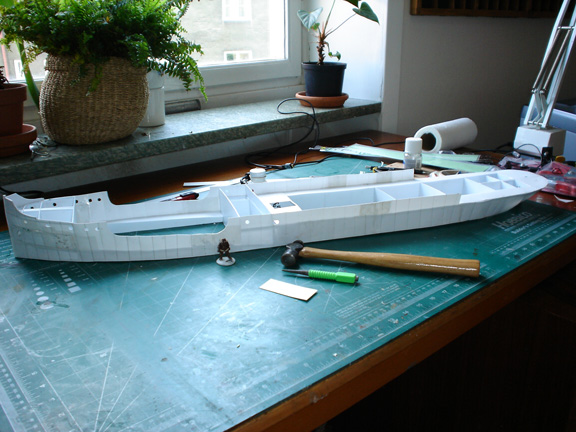

Here's a hastily thrown together pic of my WIP:


The keel is stretched over at Kanwee, Flotum & Howe Shipwrights Ltd, Glasgow.

The paper model was, as previoulsy said, enlarged 200%, cut out and pasted with Pritt (easily aquired from your unsuspecting work place) to 1mm plain sheet styrene. The waterline bottom is 0.33mm to save me some remeasuring of the bulkhead pieces.

Parts were cut out and glued with polystyrene liquid and gel, depending. Plastic square rod was used for reinforcements where needed.

Let me remind you of an old truth among model builders, kids, that if you are using a jar of liquid cement remember to glue the bastards bottom to a wide sheet of card or the f¤#@er will unvariably at some point tip over and ruin several pieces of dearly bougt sheets of plastic. As it did in my case.

I forgot to put the usual miniature-of-reference in the picture but it currently measures aft to stern roughly 90cm.

Mor pics as the project strides, or hobbles, forward.

Offline Prof.Witchheimer

  • Elder God
  • Posts: 12088
    • Back of Beyond
Kartonwerft paper models
« Reply #17 on: May 22, 2007, 03:00:52 PM »
just resized the pic :)

looks promising!

Offline Westfalia Chris

  • Cardboard Warlord
  • Administrator
  • Galactic Brain
  • Posts: 7474
  • Elaborate! Elucidate! Evaluate!
Kartonwerft paper models
« Reply #18 on: May 22, 2007, 03:57:46 PM »
Quote from: "hammershield"

The keel is stretched over at the Kanwee, Flotem & Howe Shipwrights, Glasgow.


ROFLMAO! Good one. :lol:

Looks impressive. I couldn´t be bothered to tackle the devious plasticard for anything this size. I´ll stick to my cardboard stuff. But I´m looking forward to more pics, too.

Offline Hammers

  • Amateur papiermachiéer
  • Supporting Adventurer
  • Elder God
  • *
  • Posts: 16070
  • Workbench and Pulp Moderator
Kartonwerft paper models
« Reply #19 on: May 22, 2007, 04:15:37 PM »
You know, I am not sure it is any easier using cardboard in the end.

Offline Hammers

  • Amateur papiermachiéer
  • Supporting Adventurer
  • Elder God
  • *
  • Posts: 16070
  • Workbench and Pulp Moderator
Kartonwerft paper models
« Reply #20 on: June 10, 2007, 10:44:20 AM »
After a some slugish performance from the dock workers the management at Kanwee, Flotum & Howe Shipbuilders has brought in some local muscle to roughen up the Unionists and hires replacements where "early retirement" has been necessary.

The result: some excellent progress! You can't beat the motivational power of a length of leadpipe!




Now in a short time the soon to be launched has been properly decked, plated and riveted. A represenative of the owner, a pilot Graf von Rosen, can be seen inspecting the sleek lines of naval beauty.

Some tools was carlessly left in the picture, a hammer and punch used for the riveting. The careless worker responsible was apprehended, thoroughly flogged and his weekly pay deducted.

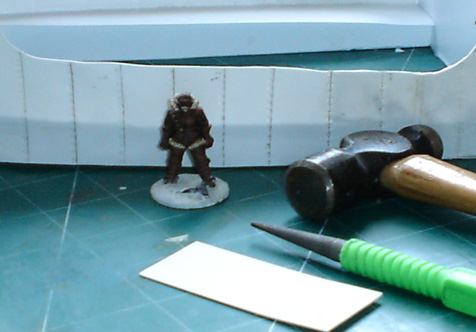

A close up on proportions and the tools used:

Offline Argonor

  • Elder God
  • Posts: 11336
  • Attic Attack: Mead and Dice!
    • Argonor's Wargames
Kartonwerft paper models
« Reply #21 on: June 15, 2007, 07:46:39 AM »
Looks overwhelming to me   :o

Can't wait to see the finished thing. I'd never have the patience to build such a model, but it's always interesting to watch those magnificent deeds of others.
Ask at the LAF, and answer shall thy be given!


Cultist #84

Offline Hammers

  • Amateur papiermachiéer
  • Supporting Adventurer
  • Elder God
  • *
  • Posts: 16070
  • Workbench and Pulp Moderator
Kartonwerft paper models
« Reply #22 on: June 15, 2007, 08:01:27 AM »
Quote from: "Argonor"
Looks overwhelming to me   :o


So far it is much, much easier than you think. But I haven't come to the fiddly bits yet, like wheel, winches and , um.. those trumpet like air intakes (don't know the english word for it).

I planked and "chaulked" the bow and bridge decks yesterday which was quite enjoyable. I wished I had a better small digital or a macro for my EOS so I could take better closeups.

I am also thinkingabout cutting it in half so it will be easier to store.

Offline Hammers

  • Amateur papiermachiéer
  • Supporting Adventurer
  • Elder God
  • *
  • Posts: 16070
  • Workbench and Pulp Moderator
Kartonwerft paper models
« Reply #23 on: June 16, 2007, 10:58:54 PM »
Progress report:

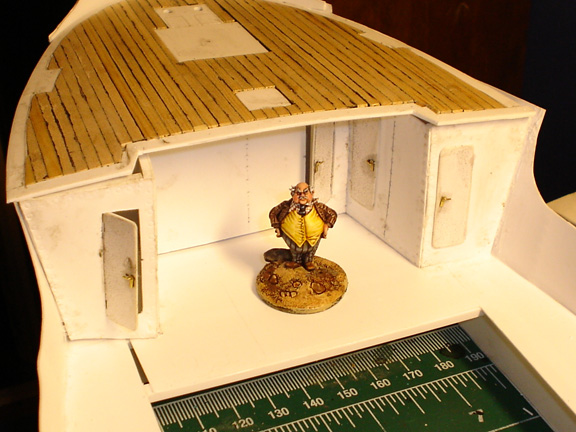

Here you see Col Marbles inspecting the bow deck planking and the bow cabinets. This piece became a good deal more fiddly than it had to because I had made some bad measurements and did think it through befióre glueing.


Offline Hammers

  • Amateur papiermachiéer
  • Supporting Adventurer
  • Elder God
  • *
  • Posts: 16070
  • Workbench and Pulp Moderator
Kartonwerft paper models
« Reply #24 on: June 20, 2007, 08:40:15 PM »
I switched over to making some of the a little more intricate bits:

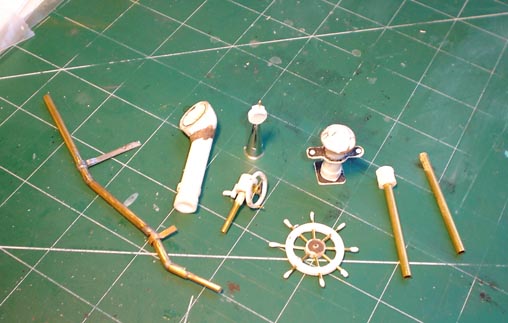

From left to right they are:
stove pipe, midship air intake(Lüfter), bailing pump (Pumpe), machine telegraph (Maschinentelegraf), wheel (Steuerrad), compass, (Kompass), ventilators (Lüfter).
